Porsche Active Suspension Management (PASM)

The Road That Changes Every Mile

The Expansion Joint at 75 Mph

You know the stretch. I-95 north of Fort Lauderdale, just past the Sunrise Boulevard exit, where the concrete slabs meet with a rhythmic thump every 60 feet. In a conventional car, you brace for it. Your spine compresses. Your coffee splashes. Your passengers glance at you with that look — the one that says they are reconsidering the ride they agreed to.

In a Porsche with PASM, that stretch disappears. Not because the road changed. Because the car did — 100 times per second.

Porsche Active Suspension Management reads the road faster than you can feel it. It firms the damper before the wheel hits the joint. It softens the rebound before your body registers the impact. It transforms the same road into two different experiences: calm and composed when you are cruising, sharp and planted when you are pushing.

This is not air suspension. This is not magic. This is a damper that thinks.

WHAT IS PORSCHE PASM?

The Short Answer

Porsche Active Suspension Management (PASM) is an electronically controlled damping system that continuously adjusts the firmness of each shock absorber in real time based on road conditions, driving style, and selected mode. Sensors at each wheel monitor vertical motion, steering input, acceleration, braking, and vehicle speed, sending data to a central control unit every 10 milliseconds. The system then adjusts each damper independently via an electrically actuated hydraulic bypass valve, selecting from a map of settings ranging from comfort-oriented to decidedly sporty. In the event of a system failure, the valve automatically closes, defaulting to the hardest damper setting for safety. PASM is standard on many Porsche models and optional on others, typically lowering the vehicle by 10 millimeters compared to non-PASM suspension.

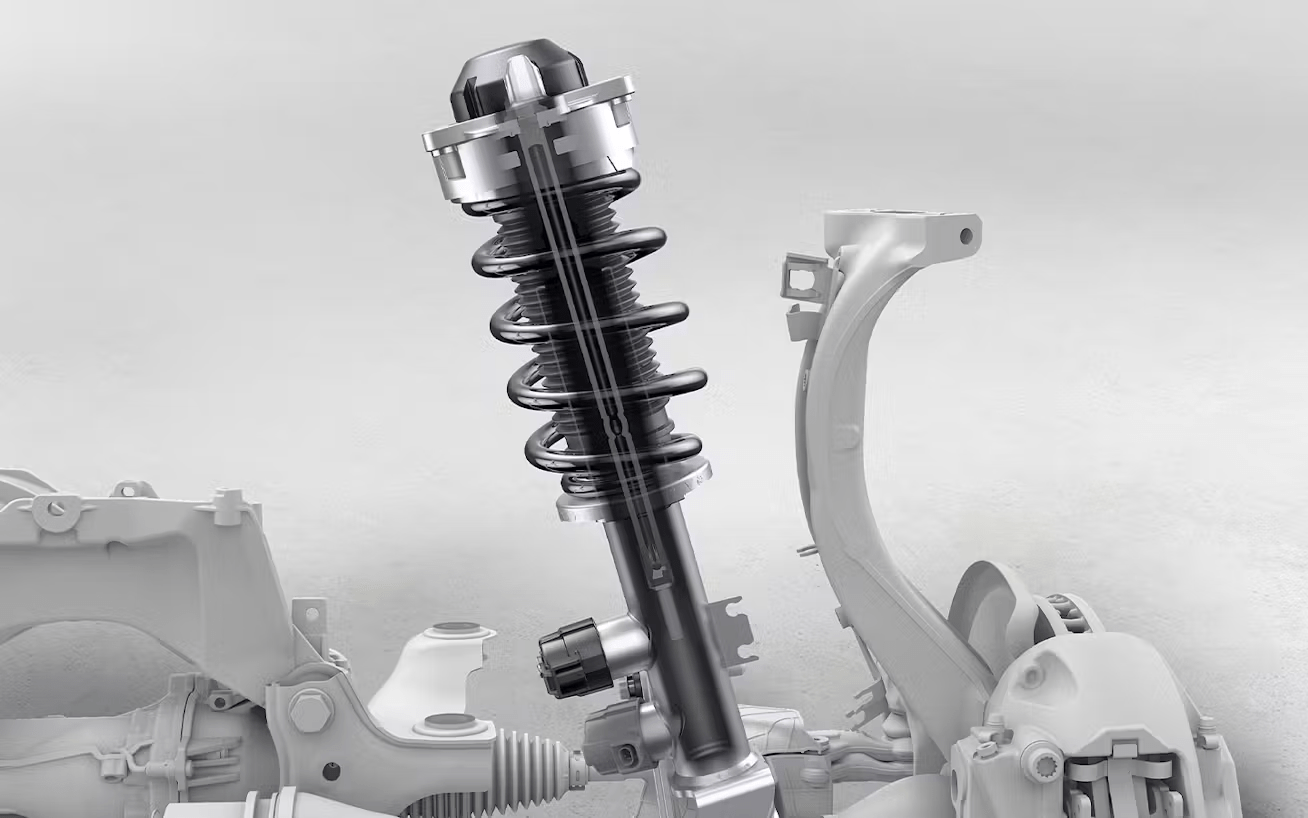

The system does not replace your springs — it works with them. On steel-spring models, PASM adjusts damping only. On air suspension-equipped models, PASM works in conjunction with adjustable air springs that can also vary ride height. These are separate but complementary systems.

HOW PASM WORKS

The Five Software Modules

PASM does not simply toggle between "soft" and "hard." It employs five specialized software modules that overlay the base Normal and Sport maps, each addressing a specific driving scenario:

The overlap between Normal and Sport maps is intentional. If the Sport map calls for a setting that would cause the vehicle to bounce or lose contact on an uneven surface, the system can select a softer setting from the Normal map instead. This is the "intelligent" part of active suspension — it does not blindly follow mode selection; it adapts to reality.

Normal Mode: The Daily Drive

Normal mode is the default on startup. It provides comfortable damping with low damper forces for most conditions. However, the system does not remain passive — as speed increases, dampers automatically firm up to maintain stability. If you brake hard, the brake module activates. If you swerve to avoid debris, the cornering module engages. Normal mode is not "soft mode." It is "smart comfort" — relaxed until the situation demands otherwise.

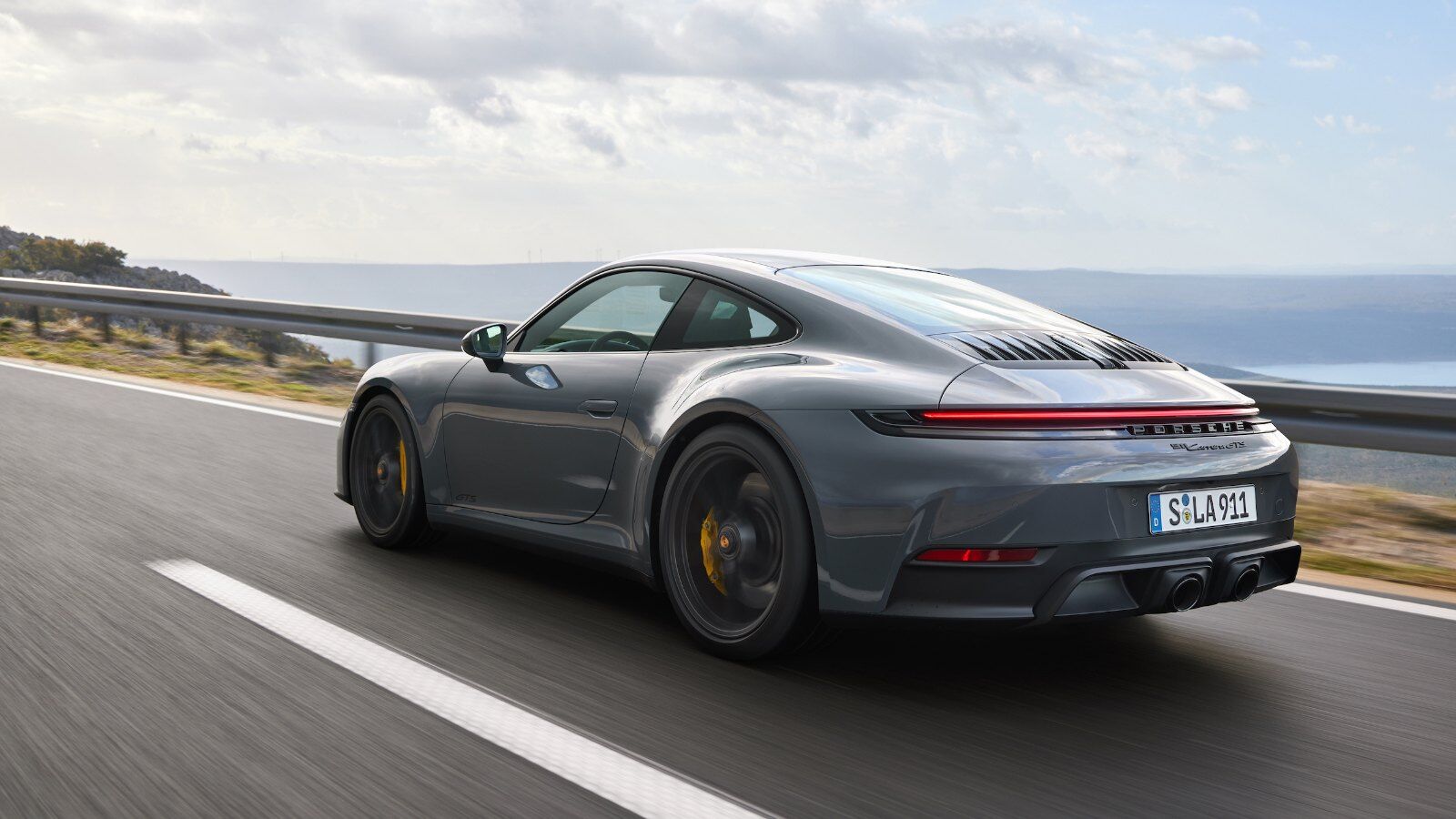

Sport Mode: The Push

When you press the shock absorber button and select Sport, the baseline damping shifts to a harder characteristic. The car feels more connected to the road. Steering precision improves. Body roll decreases. But the system still monitors surface quality — if it detects an uneven road, it will temporarily soften to maintain tire contact rather than allowing the wheels to skip across the surface.

• On certain 911 models, PASM Sport is available as an enhanced option. This includes:
• Shorter, firmer springs that lower the vehicle an additional 10mm (total 20mm lower than base)
• Specially-tuned dampers with sportier calibration
• GTS-specific anti-roll bars
• Revised front and rear spoilers

The 911 GTS models come with PASM Sport as standard equipment to compensate for the additional weight of the T-Hybrid system while maintaining Porsche's trademark agility.

Okay... SO, WHAT'S IN IT FOR ME?

For the Daily Commuter

Potholes on Federal Highway. Speed bumps in your neighborhood. The uneven pavement where I-595 meets I-95. Normal mode absorbs these without isolating you from the road. You feel the texture — you do not feel the trauma. The system reduces driver fatigue by eliminating the constant micro-corrections and body movements that make a stiff suspension exhausting over time.

For the Weekend Enthusiast

Sport mode transforms the same car for the same driver on the same weekend. The damper firmness that absorbed potholes now resists body roll through the sweepers on A1A. The brake module that prevented nose-dive in traffic now keeps the chassis flat under hard braking into a corner. You do not need two cars. You need one car with two personalities — and a button that switches between them.

For the Family Driver

PASM is not just for the person behind the wheel. Passengers feel less motion sickness when body roll and pitch are controlled. Children in the back seat do not slide across the bench in corners. Your spouse does not grip the door handle when you take the on-ramp at pace. The car feels planted, predictable, secure — even to people who do not care about handling.

For the Wheel Upgrade Considerer

You want 20-inch or 21-inch wheels for the look. But you are worried about ride quality. PASM is the answer. The system compensates for the shorter sidewalls and firmer tire construction of larger wheels by softening the damper response to high-frequency bumps. A non-PASM car with 20-inch wheels can be harsh. A PASM-equipped car with 20-inch wheels is firm but livable. If you are upgrading wheels, you should be upgrading suspension.

PASM VS. AIR SUSPENSION — The Critical Distinction

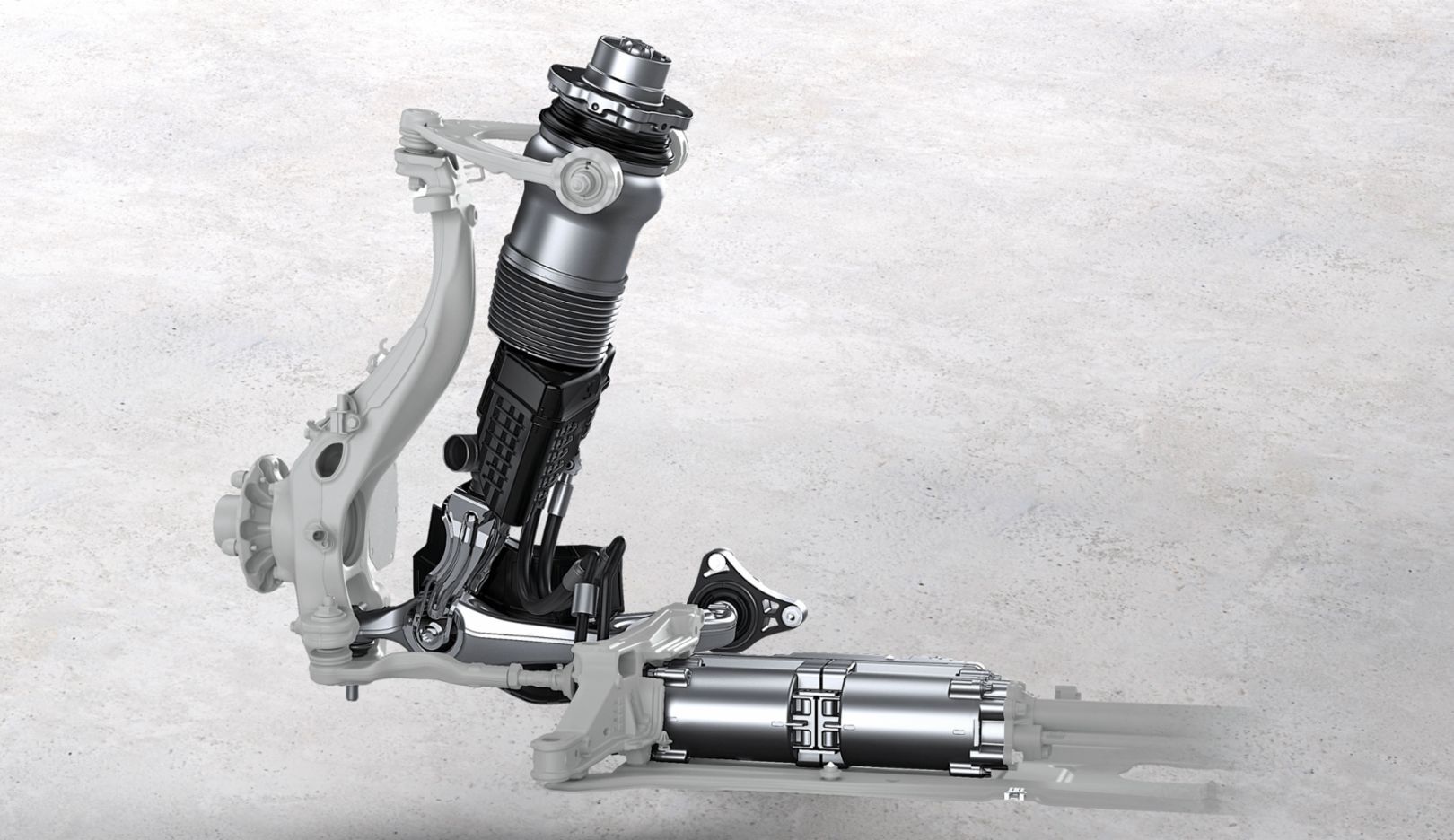

Key Insight: PASM is the brains. Air suspension is the lungs. You can have PASM alone (steel springs with smart dampers) or PASM with air suspension (smart dampers plus adjustable air springs). The Panamera comes with both as standard. The Cayenne offers air suspension as an upgrade over standard PASM. The 911 and 718 use PASM with steel springs — lighter, more direct, more communicative.

WHICH 2026 PORSCHE MODELS HAVE PASM?

2026 Changes: The most significant update for 2026 is that PASM is now standard equipment across the entire Cayenne and Panamera lineups. Previously optional on base models, it is now included regardless of trim or powertrain configuration.

The Suspension You Stop Noticing

There is a paradox in great suspension: the better it is, the less you think about it. Bad suspension announces itself with every bump, every roll, every dive. Good suspension disappears into the background of the drive.

PASM achieves this paradox by being present when you need it and invisible when you do not. In Normal mode, it is the absence of fatigue — the 300-mile drive that leaves you energized instead of beaten. In Sport mode, it is the confidence to carry speed into a corner you have never driven before, knowing the car will stay flat and predictable.

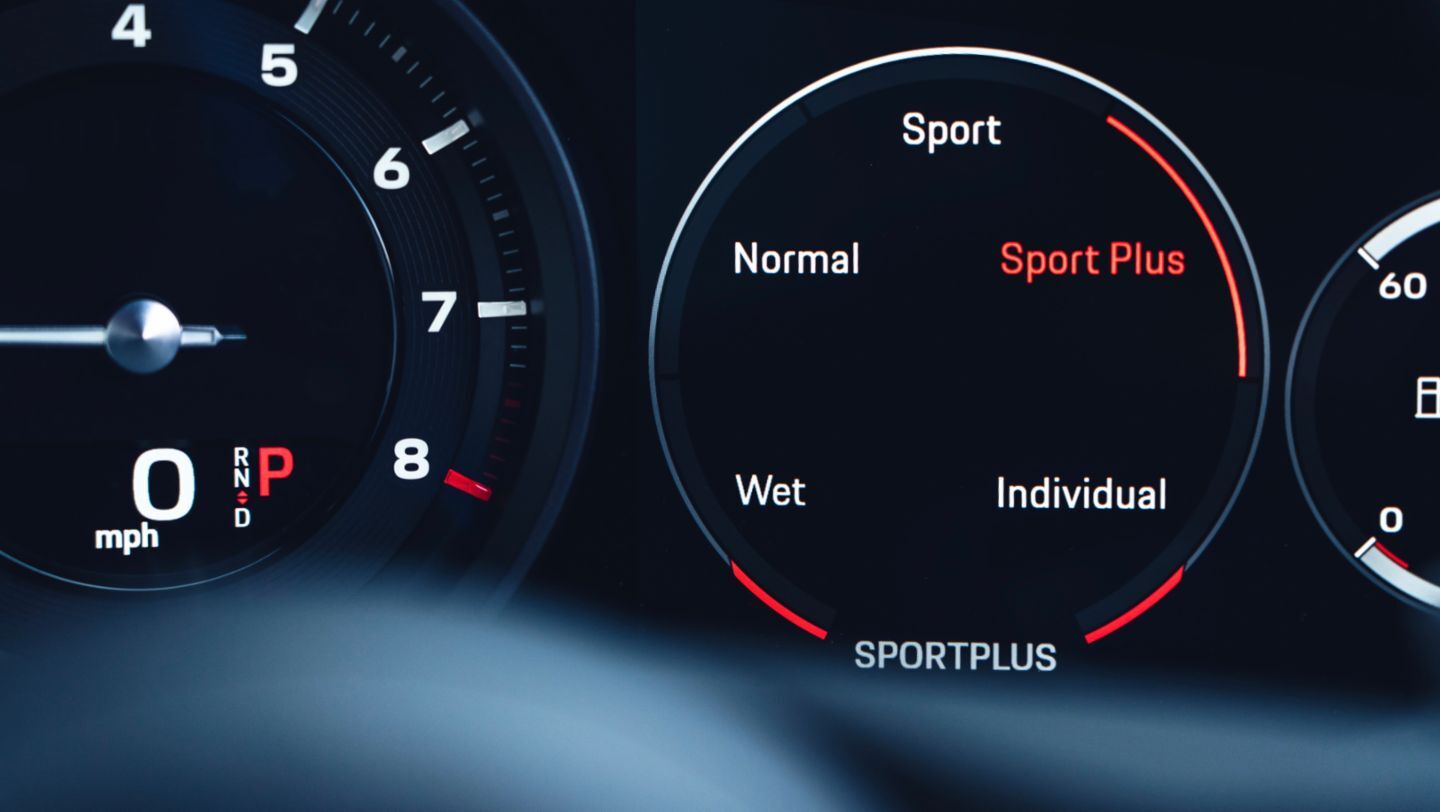

The button on the center console — the shock absorber icon — is not a gimmick. It is a personality switch. One press and the same car, the same tires, the same road becomes a different experience. Not louder. Not faster. Better connected.

That is what Porsche engineering means. Not adding power you use once a month. Adding precision you use every mile.

Porsche PASM Common Questions

What is Porsche PASM?

Porsche Active Suspension Management (PASM) is an electronically controlled damping system that continuously adjusts shock absorber firmness at each wheel based on road conditions, driving style, and selected mode. It uses sensors and a control module to make adjustments every 10 milliseconds, providing both comfort and performance from the same suspension.

How does PASM work?

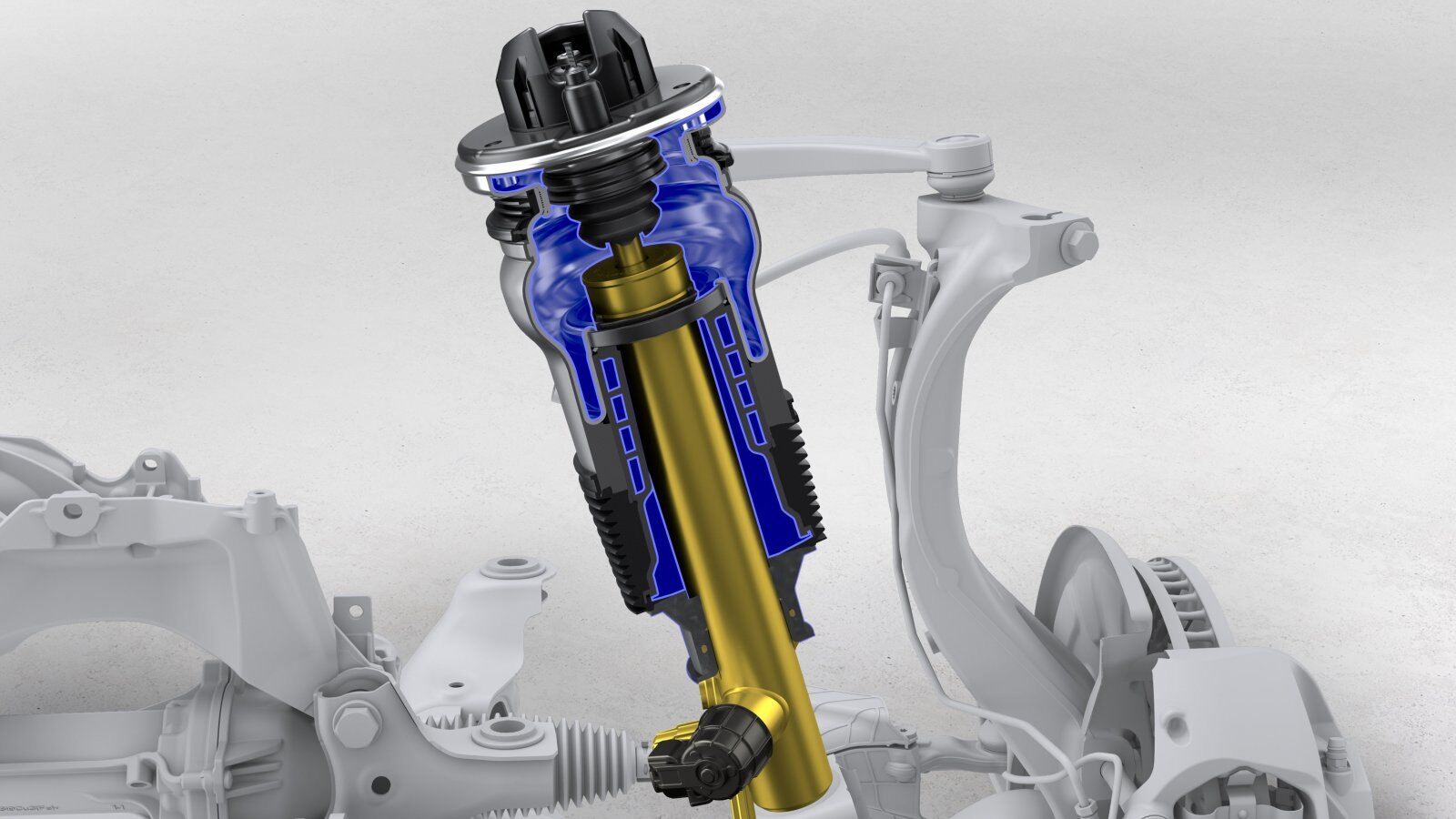

PASM uses accelerometers at each wheel and body-mounted sensors to monitor vertical motion, steering input, braking, acceleration, and vehicle speed. A central control unit processes this data and adjusts each damper's hydraulic bypass valve to vary oil flow — softer for comfort, harder for performance. Five software modules (brake, load-change, vertical-control, cornering, sport) overlay the base maps to address specific driving scenarios.

What is the difference between PASM Normal and Sport mode?

Normal mode provides comfortable damping with low forces for daily driving, but automatically firms up as speed increases or during emergency maneuvers. Sport mode maintains a harder baseline damping characteristic for better body control, steering precision, and reduced roll during spirited driving. Both modes use the same intelligent software modules to adapt to road surface quality.

What is PASM Sport?

PASM Sport is an enhanced version available on certain 911 models. It includes shorter, firmer springs that lower the vehicle by an additional 10mm (total 20mm lower than base), specially-tuned dampers, model-specific anti-roll bars, and revised aerodynamics. The 911 GTS comes with PASM Sport as standard to maintain agility with the T-Hybrid powertrain's additional weight.

Does PASM change ride height?

PASM itself adjusts damping force only, not ride height. However, PASM-equipped vehicles typically sit 10mm lower than non-PASM models due to shorter springs (static lowering). PASM Sport lowers an additional 10mm. Dynamic ride height changes require the optional air suspension system, which works in conjunction with PASM on Panamera and Cayenne models.

Which Porsche models have PASM as standard?

As of 2026, PASM is standard on the 911 Carrera S and above, all 718 S models, all Cayenne models (new for 2026), all Panamera models (including base), and Taycan. It remains optional on the base 911 Carrera and base 718 Cayman/Boxster. Availability on Macan varies by trim and model year.

Is PASM worth it for daily driving?

Yes. PASM's Normal mode provides superior comfort over rough surfaces compared to non-PASM suspension, while maintaining the safety benefits of automatic firming during emergency maneuvers. The system reduces driver fatigue on long drives and improves passenger comfort. For vehicles upgraded to larger wheels (20-inch+), PASM becomes even more valuable in maintaining ride quality.

What is the difference between PASM and air suspension?

PASM is an electronically adjustable damper system that works with conventional steel springs (or optional air springs). Air suspension replaces steel springs with adjustable air bags that can vary ride height dynamically. PASM controls how firm or soft the suspension feels; air suspension controls how high or low the vehicle sits. They are separate systems that can work together.

Does PASM improve handling?

Yes. In Sport mode, PASM reduces body roll, pitch, and dive — the three movements that unsettle a car in corners, under braking, and during acceleration. The cornering module increases damping on the loaded side of the vehicle during turns, keeping tires in better contact with the road. The brake module prevents nose-dive under hard braking, allowing later braking points and more stable corner entry.

What happens if PASM fails?

PASM employs a fail-safe mechanism: if the system detects a failure, the electrically actuated bypass valve in each damper automatically closes. This defaults the suspension to its hardest damping setting — the safest mode from a driving dynamics perspective. The car remains fully drivable but with firmer ride quality until serviced.

Can I add PASM after purchase?

No. PASM requires specific electronically controlled dampers, sensors, and control module hardware that must be installed during manufacturing. It is not available as an aftermarket upgrade. If you want PASM, you must select it when ordering or purchase a vehicle that already has it equipped.

Does PASM require maintenance?

PASM dampers are maintenance-free under normal driving conditions. The system is diagnosed during routine Porsche service intervals. If a damper fails, it must be replaced as a complete unit — the electronic components are integrated and not serviceable separately.

Why do some people dislike PASM?

Some enthusiasts prefer the predictability of a fixed suspension setup, particularly on track where they want direct control over weight transfer. Others find the system too complex or subtle for street use. However, most owners appreciate the dual-mode capability, and the Macan Forum notes that even the stiffest PASM setting in an SUV is softer than the softest setting in a non-PASM 911 — the system is tuned appropriately for each vehicle's purpose.
