Porsche 3D Surround View with Trained Parking

The Garage That Defeats You

The 11:47 PM Arrival

You have driven 340 miles today. Meetings in Miami. A site visit in Boca. Dinner that ran late. And now — the final boss.

Your garage.

It is not wide. It is not straight. The support column sits exactly where your passenger-side mirror wants to be. The shelves on the left wall extend 8 inches into the turning radius. You have scraped that wall twice. You have folded your mirror once. You have developed a ritual: pull in at an angle, reverse, straighten, reverse again, breathe, check both sides, straighten once more, cut the wheel, and finally — stop with 3 inches to spare on each side.

Every night. Every single night. The same 90-second ballet of spatial anxiety.

Porsche 3D Surround View with Trained Parking was built for this exact exhaustion. Not for the parking lot at Publix where the spaces are generous and the lines are straight. For the garage that knows your name. For the driveway that narrows at exactly the wrong point. For the routine you have performed so many times you could do it blindfolded — and now, finally, you do not have to.

WHAT IS PORSCHE 3D SURROUND VIEW WITH TRAINED PARKING?

The Short Answer

Porsche 3D Surround View with Trained Parking is an optional parking assistance system for the 2026 Macan Electric that uses four high-resolution cameras to create a 360-degree view of the vehicle and its surroundings. Trained Parking can learn up to five custom parking routines — such as your garage or office parking space — and repeat them automatically after a one-time manual demonstration. The system recognizes the saved environment within a 400-meter radius and offers to take over the maneuver. Reversing Assist can automatically reverse the vehicle up to 160 feet along a just-driven route. Transparent Hood projects a virtual view of the area beneath and directly in front of the vehicle. The driver remains in control and can interrupt the process at any time.

HOW TRAINED PARKING WORKS

The One-Time Training Session

You drive the route manually once. The system records:

• The steering inputs
• The speed profile
• The spatial surroundings (up to 200 meters / ~656 feet of route length)
• The environmental landmarks (garage door position, wall distances, column locations)

The recording takes 30–60 seconds. You save it with a name — "Home Garage," "Office Level 3," "Beach House Driveway." The system stores up to five such routines.

The Automated Execution

When you return to the saved location — within a 400-meter / ~1,300-foot radius — the system recognizes the environment and displays an offer on the PCM screen: "Execute trained parking routine: Home Garage?"

You confirm. The system takes over steering, acceleration, and braking. You monitor. You can pause, abort, or override with the brake pedal or steering wheel at any moment. The vehicle follows the learned path with centimeter precision, adjusting for minor environmental changes within the stored spatial map.

Remote Execution via Smartphone

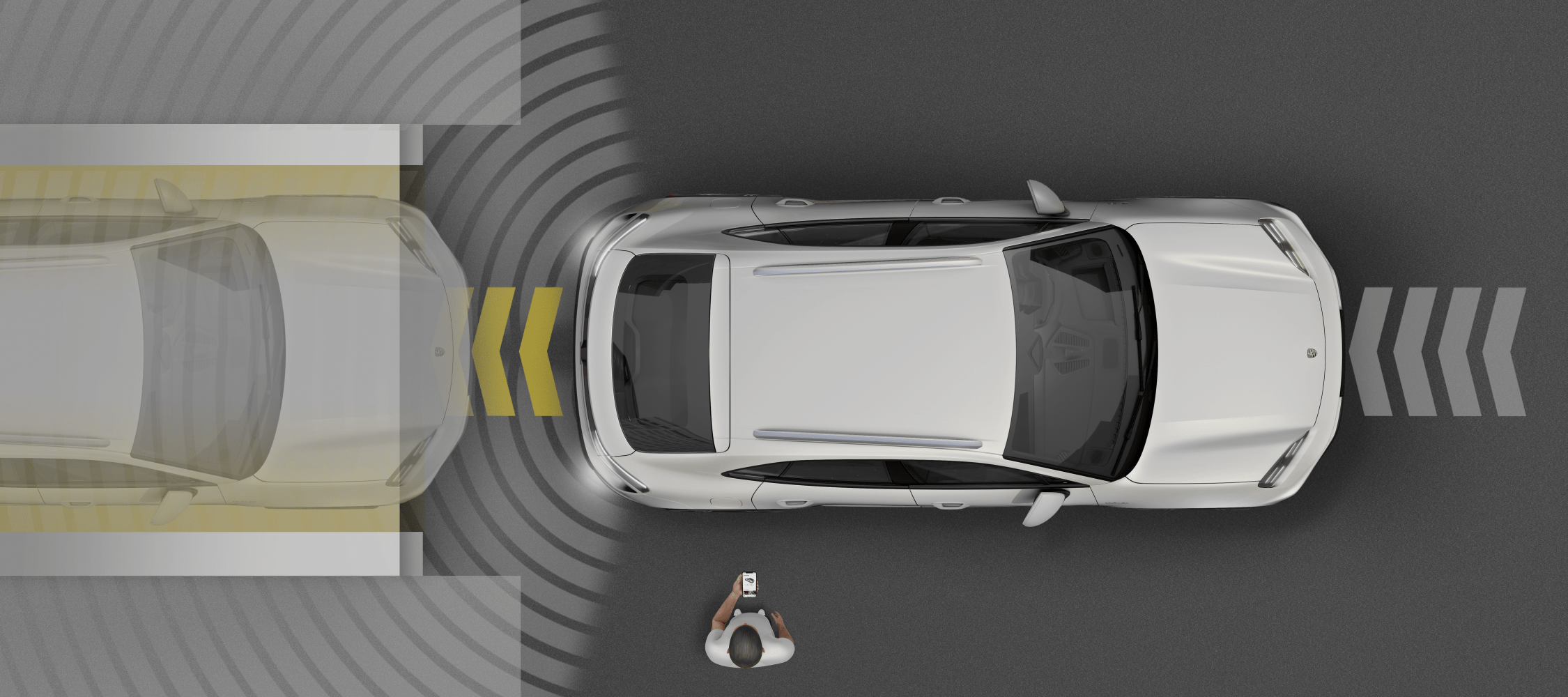

Trained Parking routines can also be initiated remotely through the My Porsche app. You exit the vehicle, stand within approximately 5 meters / 16 feet, and command the vehicle to park itself via smartphone. This is particularly useful in tight spaces where door opening is restricted. The Remote Park Assist functionality enables both trained routines and standard parking maneuvers from outside the vehicle.

HOW REVERSING ASSIST WORKS

The Problem It Solves

You navigate a narrow, winding driveway forward. Trees on both sides. A stone wall on the left. A gate that requires a three-point turn to align with. You reach the end, stop, and now must reverse the exact path you just drove — but backward, with limited visibility, and no spatial memory of the curves you just navigated.

Reversing Assist records the last 160 feet / 50 meters driven forward. When you shift into reverse, the system offers to retrace the route automatically. It controls steering and throttle. You monitor via the 360-degree camera view and the mirrors. The system stops automatically if it detects an obstacle in the path.

This is not new technology — BMW introduced a similar system approximately six years ago — but Porsche's implementation integrates seamlessly with the 3D Surround View camera suite and the Macan EV's electric powertrain for precise, silent execution.

HOW TRANSPARENT HOOD WORKS

The Virtual View Beneath

Traditional front cameras show you what is directly ahead. They do not show you what is directly beneath the front bumper — the curb you are about to scrape, the parking block you are about to ride over, the rock you cannot see from the driver's seat.

Transparent Hood uses the front camera and both exterior mirror cameras to stitch together a virtual view of the area directly in front of and beneath the vehicle. The image projects onto the central display, showing obstacles that are below your natural line of sight. Once the obstacle is cleared, the display continues for a limited time to confirm safe passage, then returns to normal camera view.

This is particularly valuable when slowly rolling forward over unclear terrain — construction zones, unpaved driveways, or parking stops that sit exactly at bumper height

Okay... SO, WHAT'S IN IT FOR ME?

For the Daily Commuter

Your garage is not getting wider. Your parking space at work is not getting straighter. But your tolerance for the nightly parking ritual is wearing thin. Trained Parking eliminates the 90-second stress sequence. You arrive, you confirm, you monitor, you walk away. The car parks itself with the precision you have spent years developing — except now it happens in 20 seconds without your hands on the wheel.

For the Family with Multiple Drivers

Your spouse parks differently. Your teenager is still learning spatial judgment. Trained Parking stores the optimal routine — your routine — and executes it consistently regardless of who is behind the wheel. The garage wall stops collecting paint samples. The mirror stops folding itself in self-defense.

For the Rural or Coastal Property Owner

Gravel driveways that narrow at the gate. Beach house paths that wind between vegetation. Boat ramps that require precise alignment. Reversing Assist remembers the path in and retraces it exactly in reverse. Transparent Hood shows you the rocks, the drainage ditches, the uneven ground that sits below bumper level. You stop guessing. You start knowing.

For the Trailer Owner

The 2026 Macan Electric AWD variants tow up to 5,500 pounds — a 1,100-pound increase from the outgoing model. The Trailer Manoeuvring Assistant, included in the Park Assist package, controls steering while you manage throttle and brake. Set the desired angle by swiping on the central display. The system prevents jackknifing and initiates automatic braking if the angle becomes too tight. You reverse with a trailer without the marital tension that usually accompanies the maneuver.

WHICH 2026 PORSCHE MODELS HAVE 3D SURROUND VIEW WITH TRAINED PARKING?

Critical distinction: The enhanced 3D Surround View with Trained Parking, Reversing Assist, and Transparent Hood is exclusive to the 2026 Macan Electric. Other Porsche models offer standard Surround View with Active Parking Support (automatic parking in detected spaces) but lack the learning, reversing, and transparent hood capabilities.

Package requirement: On the Macan EV, the system is part of the "Park Assist including 3D Surround View, Comfort Access and Porsche Digital Key" option package. It cannot be ordered as a standalone feature.

The Parking You Stop Thinking About

There is a moment in every Porsche owner's life when the car becomes invisible. Not the design — you never stop noticing the design. Not the sound — you never stop listening for the sound. But the mechanics. The operation. The thousand micro-decisions that driving requires.

You stop thinking about braking points because the PCCB brakes are that predictable. You stop thinking about lane position because the steering is that precise. And now, with 3D Surround View and Trained Parking, you stop thinking about the garage. You stop thinking about the driveway. You stop thinking about the parking space that used to require your full concentration.

The car remembers. The car executes. You arrive, you exit, you walk away. The Porsche parks itself with the same precision you demand from it at 120 mph on the highway — because precision is not a speed-dependent virtue. It is a Porsche virtue.

Porsche Digital Key Common Questions

What is Porsche 3D Surround View with Trained Parking?

Porsche 3D Surround View with Trained Parking is an optional parking assistance system for the 2026 Macan Electric that uses four high-resolution cameras to create a 360-degree view of the vehicle. Trained Parking can learn up to five custom parking routines and repeat them automatically after a one-time manual demonstration. The system also includes Reversing Assist, Transparent Hood, Active Parking Support, and Trailer Manoeuvring Assistant.

How does Porsche Trained Parking work?

You drive the parking route manually once. The system records steering inputs, speed, and spatial surroundings up to 200 meters. When you return to the saved location within 400 meters, the system recognizes the environment and offers to execute the routine. It then controls steering, acceleration, and braking while you monitor. You can interrupt or override at any time. Routines can also be executed remotely via the My Porsche app.

How many parking routines can Trained Parking save?

Trained Parking can save up to five individual parking routines. Examples include your home garage, office parking space, or a frequently visited driveway. Each routine is named and stored independently.

What is Porsche Reversing Assist?

Reversing Assist records the last 160 feet / 50 meters driven forward and can automatically retrace that route in reverse. The system controls steering and throttle while the driver monitors. It is particularly useful for narrow driveways, winding parking garages, and tight access roads where reversing visibility is limited.

What is Porsche Transparent Hood?

Transparent Hood uses the front camera and both exterior mirror cameras to project a virtual view of the area directly in front of and beneath the vehicle onto the central display. This helps the driver see obstacles that are below the normal line of sight, such as curbs, parking blocks, and rocks on uneven terrain. The display continues for a limited time after the obstacle is cleared.

Which Porsche models have Trained Parking?

As of 2026, Trained Parking is available exclusively on the Macan Electric. It is not available on the gas-powered Macan, Cayenne, 911, Taycan, or Panamera. The system is part of the "Park Assist including 3D Surround View, Comfort Access and Porsche Digital Key" package on the Macan EV.

Is Porsche Trained Parking autonomous?

No. Trained Parking is an SAE Level 2 driver assistance system. The driver must remain in the vehicle and monitor the maneuver at all times. The system can be interrupted or overridden instantly via brake pedal, steering wheel, or the abort button on the PCM screen. Porsche explicitly states that all functions "require constant monitoring by the driver."

Can Trained Parking work remotely?

Yes. Trained Parking routines can be executed remotely via the My Porsche app when using Remote Park Assist functionality. You stand within approximately 5 meters / 16 feet of the vehicle and initiate the routine from your smartphone. This is useful in tight spaces where door opening is restricted.

What is the difference between Trained Parking and Active Parking Support?

Active Parking Support detects suitable parking spaces (parallel, perpendicular, diagonal) in public areas and automatically parks the vehicle. Trained Parking learns custom routines for specific locations (your garage, your office) and repeats them in familiar environments. Active Parking Support is for public parking; Trained Parking is for your personal spaces.

Does 3D Surround View include a trailer assistant?

Yes. The Park Assist package includes Trailer Manoeuvring Assistant. You activate it in the PCM, set the desired steering angle by swiping on the central display, and control only the accelerator and brake while reversing. The system manages steering and initiates automatic braking if the angle becomes too tight.

How much does the 3D Surround View package cost?

Porsche does not publish standalone pricing for the 3D Surround View package. It is bundled as part of the "Park Assist including 3D Surround View, Comfort Access and Porsche Digital Key" option package on the 2026 Macan Electric. Contact Champion Porsche for specific pricing on your configured vehicle.

When will the 2026 Macan Electric with Trained Parking be available?

The 2026 Porsche Macan Electric is available to order now, with U.S. deliveries scheduled to begin in spring 2026.

What is the difference between 3D Surround View and standard Surround View?

Standard Surround View (available on other Porsche models) provides a 360-degree bird's-eye view using four cameras. 3D Surround View (Macan EV only) adds higher resolution, a more immersive display, Trained Parking, Reversing Assist, Transparent Hood, and enhanced camera perspectives. The "3D" designation refers to both the visual rendering quality and the additional intelligent functions.
